Now Available for Driver and Passenger Seats
Stock seats are the first thing to go on a well used 80 Series, and scheel-mann is the gold standard replacement. But a premium seat is only as good as what it's bolted to. The only other bracket option on the market gets the job done on pavement, but off road, the whole mount tends to shift and wobble underneath you. It also leaves the space under the seat completely wasted. We built the Tolerance Stack system to fix both problems: a mount engineered to stay put off road, with a functional storage compartment built into the structure itself. The passenger side was always designed as a mirror of the driver side, we just needed to finish proving the system out before releasing both together. Driver and passenger, ready to order now:
What's In the Kit
Every kit is built around four core parts:
Floor Mount: The structural base that bolts to the vehicle floor. Its enclosed, boxed design ties the legs together into one rigid frame instead of leaving them as bare, unsupported uprights. All the fasteners are welded in as captive points, so you're threading a bolt into a fixed nut instead of holding one on the back side.
Seatbelt Bracket: Lets the seatbelt buckle move with the seat on its sliders, the way it does from the factory, instead of leaving the buckle fixed in one spot regardless of where the seat is positioned.
Spacer Plate: The seatbelt bracket is 3/16 inch steel, and it only sits on one side of the mount, since a seat only needs a buckle on one side. The spacer plate, also 3/16 inch steel, sits on the other side so the mount stays level instead of tilting toward the side carrying the bracket.
Side Plate: A laser cut, black anodized aluminum panel that covers the seat rails and sliders. It protects the hardware and doubles as a rigid mounting surface for a fire extinguisher or flashlight, but just as important, it hides the mechanical look of the sliders and gives the install a finished, professional look that matches what you've already spent on the seat itself.
The only other seatbelt mount option on the market for these seats is ambidextrous, the same part works on either side. But a seat only uses a buckle on one side, so that leaves one extra mounting tab you don't need, and on a generic mount install, that tab usually gets cut off. Ours is side specific from the start, so there's nothing extra to remove.
Built to Stay Put
The only other bracket option for the 80 Series is fine cuz It's cut from 3/16 inch steel. What it doesn't have is bracing between the legs. Four legs welded straight up off a flat plate hold fine on pavement, but get into real off road terrain and that unbraced structure starts to flex. The seat itself and the whole mount shifts and wobbles under you.
Our mount doesn't use unbraced legs. The same enclosure that creates the storage volume under the seat also ties the legs together into one boxed structure, so the load is carried by the whole assembly instead of four independent weld joints. Off road, that's the difference between a seat that stays put and one that moves around under you.
Storage Where There Used to Be Dead Space
We hate wasted space. Every seat mount, ours included, leaves an empty cavity under the seat once the seat itself is up out of the way. Most just leave it empty. The Tolerance Stack mount encloses that cavity into a functional storage volume instead of letting it go to waste. It takes advantage of the scheel-mann Vario F's unique design where the center cushion lifts up, acting as a lid, while the bolsters remain fixed. It utilizes the floor carpet as the bottom and is the perfect spot to stash a winch controller, tire gauge, first aid kit, or all three and then sum.
Passenger Side: A Real Tradeoff to Consider

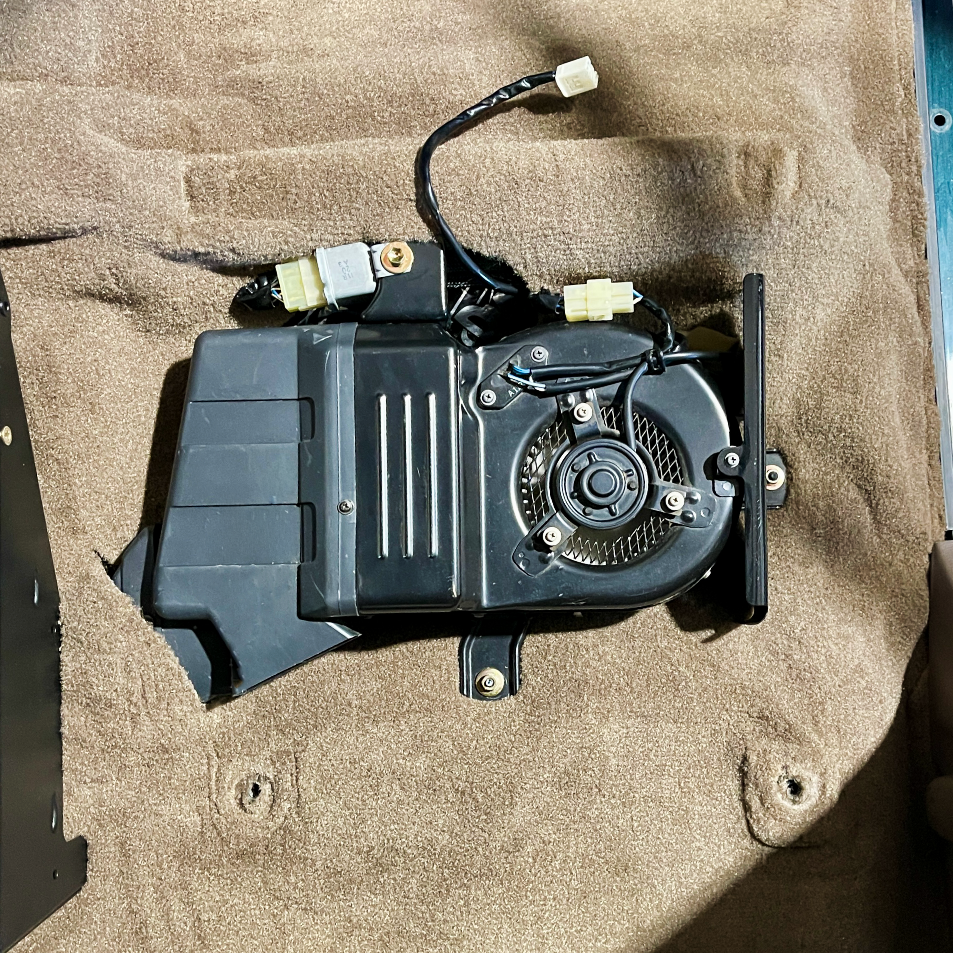

Getting this storage volume on the passenger side requires permanently removing the factory rear heater and blower assembly. This isn't a small detail to skim past, that unit supplies heat to the rear cabin, and once it's out, it's out. We only built the storage feature around this because removing that unit is already a common enough modification on these trucks, but it's still a real decision, not a footnote. If you still rely on that rear heat, the standard universal mount, without the integrated storage, is built for exactly that and skips the heater removal requirement entirely.
Power for Heat and Vent
We looked at integrating with the factory OEM seat heater switch, but that path needs extra parts that most trucks don't have and the OEM seat heaters were prohibitively expensive, since no US-spec 80 Series came with the factory heated seat option to begin with. Instead, we power the scheel-mann heating elements and fans (for Klima) off the factory rear blower motor circuit. It's already ignition switched through the rear heater/blower relay, so the seat heat and vent only run with the truck on, and you control them with scheel-mann's own round switches rather than a factory switch which needs to be hunted down.
On a driver side only build, tapping into that circuit doesn't disturb the rear blower's normal operation. On a passenger side build, where the rear heater and blower come out anyway to make room for the underseat storage, tapping the same circuit is even simpler, since at that point it's just an open circuit with nothing else pulling from it.
Klima / Ventilation Note: If you are installing scheel-mann Klima (heated and cooled) seats, you must install the separate scheel-mann rocker switch to control the ventilation fans.
This power tap comes included with the full mount kit. It's also available as a standalone purchase if you only need the harness on its own, see Optional Upgrades below.
Optional Upgrades
The base kit gets your scheel-mann seat mounted and finished out. A few add-ons are available if you want to take it further:
scheel-mann Specific Seat Sliders: Factory Toyota sliders won't bolt to a scheel-mann seat's mounting pattern. This add-on swaps in fore/aft sliders built to match scheel-mann's bolt pattern directly, available for either side.
80 Series scheel-mann Harness Integration Kit ($30, TSK-U017): Comes included if you're ordering the full mount kit. Also sold on its own for exactly that reason, a T-Bridge pulls ignition switched power off the rear blower motor circuit through the factory rear heater/blower relay, giving you a clean connection point for the scheel-mann heating elements and fans, controlled with scheel-mann's own round switches. One harness covers both the driver and passenger seats, you only need this kit once, not once per side.
80 Series Seatbelt Extension Harness ($20, TSK-U015): Pulling the factory seat removes the bridge harness that feeds the seatbelt buckle sensor, so your dash warning light stops working correctly. This 12 inch extension restores that connection. Driver side only, for trucks that had factory powered seats. There is no passenger side version needed.
A Note on Height
We didn't engineer our mount to sit as low as physically possible. We picked the height that's actually best suited to a stock 80 Series, and that's what ships for both driver and passenger.
We're also developing a taller option for those who want it, the command height. The exact rise is still being finalized, we're leaning toward something around 1.25 inches. No release date yet, more to come.
Getting Started
Already have a scheel-mann seat and just need the mount? Order the kit on its own. Starting from scratch? The seat and mount package bundles a scheel-mann seat with this mount kit in one order, the easiest way to get the whole setup sorted at once.
