Navigating the Toyota Tacoma Fold-Flat Passenger Seat Anomaly: A Guide for scheel-mann Seat Upgrades

The Unexpected Challenge: A Real-World Installation Puzzle


The phone rang late in the day. It was the installation shop, RPM Garage in Monrovia, but this time with a unique puzzle: a Toyota Tacoma Access Cab, a scheel-mann seat upgrade, and an unexpected snag. Our customer's truck, a 2009 model Tacoma, featured an uncommon "fold-flat" passenger seat, and its integrated mechanism was directly interfering with the mounting of the scheel-mann seat. It was an all-hands-on-deck moment for us at Tolerance Stack. We immediately began researching, diving into forums, scouring Toyota parts diagrams, and analyzing every image, including those sent from the shop:


Our goal was to understand precisely what the installer was facing and to devise a solid workaround. This article details the "how" and "why" behind this specific challenge and the solutions we identified for scheel-mann seat installations.


Installing scheel-mann seats requires reusing the Original Equipment Manufacturer (OEM) slide rails. This is crucial for maintaining the vehicle's safety systems, including seatbelt warning systems, occupant detection sensors (like the Toyota OCS), and components of the Supplemental Restraint System (SRS) like side airbags. Improper integration can lead to warning lights or compromise safety performance in a collision. The fold-flat mechanism, while a useful utility feature, is deeply integrated into the OEM rail, creating a direct conflict with our Tolerance Stack mounting systems.


Understanding the Tacoma's "Fold-Flat" Passenger Seat

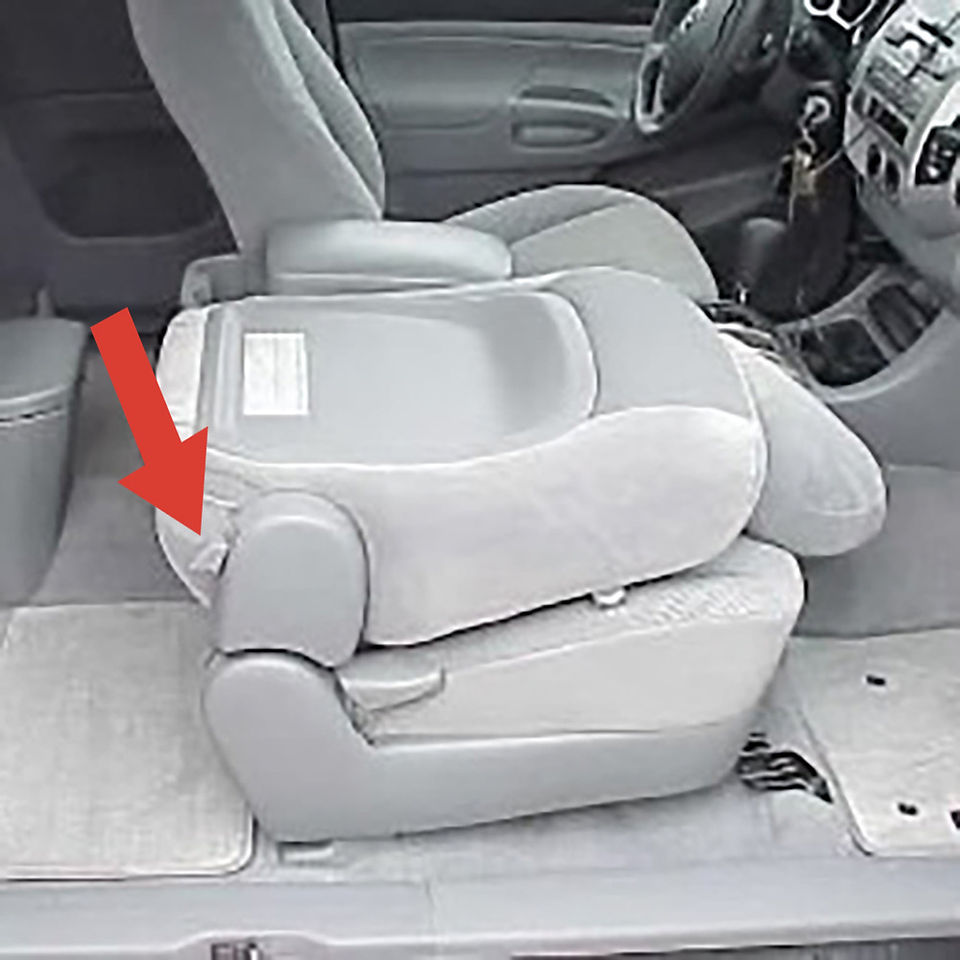

The "fold-flat" passenger seat is a distinctive feature found on certain 2nd Generation Toyota Tacoma Access Cab models (2005-2015), including the 2009 model in question. This design allows the passenger seatback to fold forward 90 degrees, creating a flat surface for cargo or a workstation. A key aspect of this particular fold-flat seat is its dual mechanical control: not only do the controls allow the seatback to lay flat, but a secondary release mechanism also disengages the fore/aft slide, all from the same control. This allows an occupant in the back seat to move the front seat forward for easier egress, enhancing practicality for Access Cab models with limited rear space:


The mechanism enabling this dual function is a complex linkage system directly integrated and riveted into the OEM passenger seat rail. This system differs from a standard front-mounted slide release handle.


This fold-flat feature was not universal across all 2nd Generation Tacomas. It was standard on some Access Cab trims like the PreRunner and optional on SR/SR5 models, but typically not found on Double Cab front passenger seats. This explains why our Tolerance Stack adapters, designed for the more common non-fold-flat configurations, encounter this unexpected interference.


Our Approach: Why OEM Rails are Essential for scheel-mann Upgrades with Tolerance Stack Adapters


The decision to reuse OEM slide rails for scheel-mann seat installation is paramount because critical safety and functional sensors are integrated within the factory seat assembly. These include the seatbelt buckle sensor, the occupant detection or proximity sensor, the Toyota Occupant Classification System, or OCS, which influences airbag deployment, and components of the Supplemental Restraint System (SRS) like side airbags.


Toyota engineers these systems to meet stringent safety standards. Modifying or bypassing these sensors without proper integration can trigger dashboard warning lights or, more critically, cause airbags to malfunction in an accident. For all necessary components, including the adapters and the "Airbag Proxy" to address the SRS connection when scheel-mann seats are installed, we at Tolerance Stack provide the complete solution. Other OEM harnesses, like the seatbelt harness, must still be reused. This highlights that modern vehicle seats are complex electronic safety systems, not just mechanical components. Successful scheel-mann seat installations rely heavily on the OEM infrastructure for safety features, making OEM rails essential. For Toyota applications, Tolerance Stack adapters are designed to integrate seamlessly with these OEM rails and provide all necessary wiring and safety components.

After the mechanical installation is successful, recalibration is then required. The easiest method for this zero-point calibration is using Toyota's TechStream software, which can be performed at the install shop. If TechStream is not available, Tolerance Stack offers a precisely engineered mechanical solution using a series of springs and spacers. This method involves using specific springs and a precise stack of washers or spacers to apply a constant, measured "weight" onto the load cell, ensuring the system recognizes an appropriate weight for airbag activation. The system is calibrated so that the seat light comes on between 8 and 22 lbs, with washers added or removed to fine-tune the compression. This adds a layer of electronic complexity to the mechanical modification.


The Point of Interference


The core of the installation challenge lies in the physical incompatibility between the OEM fold-flat seat mechanism and the mounting points of our Tolerance Stack seat adapter. The Tolerance Stack mounting bracket (the black, angular component) is designed to sit flush against the OEM seat rail and use existing bolt holes. However, the unique linkage system of the fold-flat seat, particularly the red link mount and its associated metal components (visible in the image below), directly overlaps with one of these crucial mounting holes.

The pivot mounted mechanism that needs to be removed so that the front mounting bracket can be installed.
The pivot mounted mechanism that needs to be removed so that the front mounting bracket can be installed.

Furthermore, this mechanism protrudes outwards from the main body of the seat rail. This protrusion prevents our Tolerance Stack adapter from sitting flush against the rail, creating a gap and preventing secure fastening.


The images confirm this direct physical conflict. The red plastic link mount and intricate pivoting actuators are visible underneath the Tolerance Stack front mounting bracket, obstructing a necessary mounting hole and preventing a flush fit.


Solution Pathways and Key Considerations


Addressing this interference requires choosing between two primary approaches: sourcing a compatible donor rail or modifying the existing one. Both options have distinct implications for installation, cost, and vehicle safety.


Option 1: Sourcing Donor Rails


The most straightforward solution, from a mechanical compatibility standpoint, is to replace the existing fold-flat passenger seat rail with a standard OEM passenger seat rail from a 2nd or 3rd Generation Tacoma passenger seat that lacks the fold-flat feature. This eliminates the problematic mechanism, allowing our Tolerance Stack adapter to sit flush without modification.

  • Pros: This approach maintains the OEM structural integrity and safety ratings, avoiding any compromise to the vehicle's crash performance. It also simplifies sensor integration as the base rail structure remains unchanged.

  • Cons: Finding a compatible passenger rail can be time-consuming and challenging through online marketplaces or auto recyclers. There's also the potential cost of acquiring a used rail, and it requires complete seat disassembly and reassembly onto the new rail.


Option 2: Modifying Existing Rails (Mechanism Removal)


Identifying the three rivets that need to be removed.

This method involves drilling out the large rivet that secures the fold-flat mechanism to the rail. Detaching this linkage would allow our Tolerance Stack front mount to sit flush. The process involves carefully drilling through the rivet heads and punching out the shafts, taking care not to damage the rail structure. Once removed, the mounting hole should be clear, and the protrusion eliminated.

  • Pros: This option can be quicker if a suitable donor rail is unavailable, as it reuses the existing rail, reducing search time.

  • Considerations: This modification permanently alters the side rail making reversal back to the original OEM setup impossible. You need to be committed to the seat upgrade.


Recommendations for a Successful Upgrade


Given the complexities, especially concerning safety, we at Tolerance Stack highly recommend approaching any seat-related modification with caution and, ideally, with professional guidance.

  • Prioritize Safety: Understanding the implications of modifying OEM safety components is crucial. The "donor rail" option is inherently safer as it preserves the original structural integrity of the seat rail.

  • Seek Professional Expertise: For any modifications involving structural components or safety systems, consulting with or having the work performed by a qualified automotive technician or specialist is strongly advised. These professionals have the knowledge and tools to navigate complex vehicle systems safely.

  • Meticulous Sensor Reconnection and Calibration: Ensure all wiring harnesses are properly reconnected. Be prepared for potential airbag warning lights. For recalibration of the passenger seat weight sensor (Toyota OCS), TechStream is the easiest method. If TechStream is not accessible, our Tolerance Stack spring and spacer kit provides a reliable mechanical solution for proper load cell calibration.


Conclusion


The "fold-flat" passenger seat in 2nd Generation Toyota Tacoma Access Cab models presents a unique challenge for scheel-mann seat upgrades. This unexpected interference highlights the intricate engineering of OEM vehicle components. At Tolerance Stack, our goal is to empower installers with the knowledge to choose the most appropriate solution, whether it's sourcing a compatible donor rail or carefully modifying the existing one. The key is to proceed with a full understanding of the process, prioritizing safety and ensuring all vehicle systems, including the Toyota OCS and its calibration, are properly integrated for a successful and secure scheel-mann upgrade using our Tolerance Stack adapters and components.
